ADC Different Observation Modes

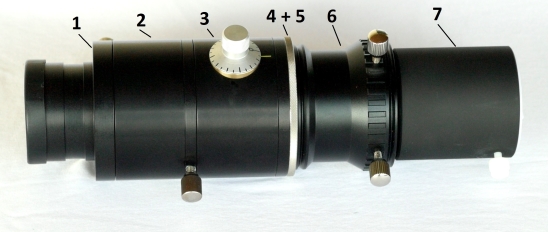

Mode 1: visual observation with focus extender, ADC and 2” eyepiece holder for telescopes with F/7 to F/10
(option for fast toggle between with and without diagonal mirror)

  • Needed back focal length 155mm
  • 2” Interface with 68mm ring dove tail (i)
  • Focus Extender with factor 1.5 and ring dove tail (i) and (a)
  • ADC Corrector with 68mm ring dove tail (a) and ring dove tail (i)
  • 2” eyepiece holder with ring dove tail (a)

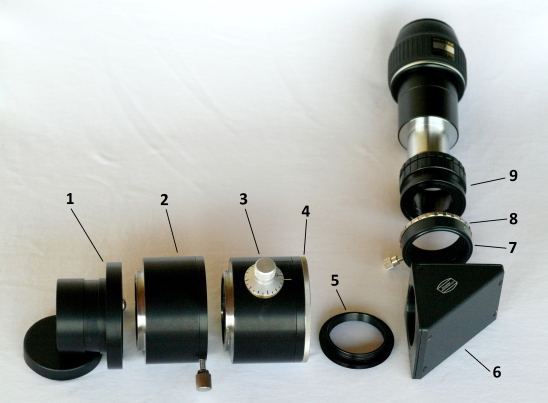

Mode 2: visual observation with focus extender, ADC, diagonal mirror and 1.25” eyepiece holder for telescopes from F/7 to F/10

this mode has been simulated and tested with components from Baader Planetarium



  • Needed back focal length 155mm
  • 2” Interface with 68mm ring dove tail (i)
  • Focus Extender and glass path corrector with factor 1.5 and ring dove tail (i) and (a)
  • ADC Corrector with 68mm ring dove tail (a) and ring dove tail (i)
  • Interface ring dove tail (a) to M48x0.75 (a)
  • Interface M48x0.75 (i) to M42x0.75 (a)
  • 1.25” diagonal mirror (Maxbright)
  • Ring dove tail system from Baader
  • 1.25“ QuickLock System for 1.25“ eyepieces

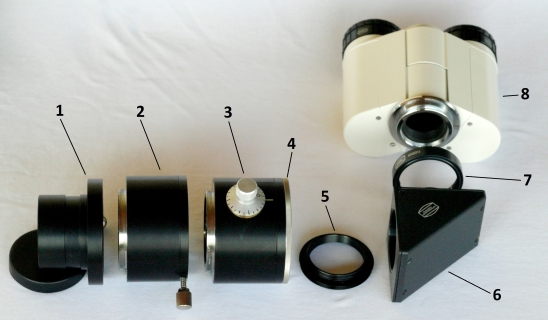

Mode 3: visual observation with focus extender, ADC, diagonal mirror and binocular viewer for telescopes from F/7 to F/10

this mode has been simulated and tested with components from Baader Planetarium

  • Needed back focal length 195mm
  • 2” Interface with 68mm ring dove tail (i)
  • Focus extender and glass path corrector with factor 1.5 and ring dove tail (i) and (a)
  • ADC Corrector with 68mm ring dove tail (a) and ring dove tail (i)
  • Interface ring dove tail (a) to M48x0.75 (a)
  • Interface M48x0.75 (i) to M42x0.75 (a)
  • 1.25” diagonal mirror (maxbright)
  • Ring dove tail system from Baader
  • Binocular viewer from Zeiss

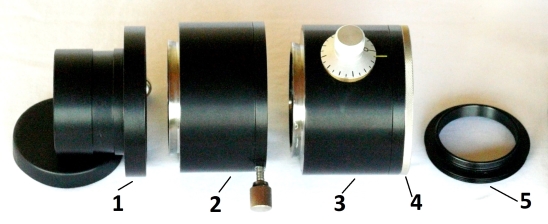

    Mode 4: Photographic applications with field of view up to 40mm

    • 2” Interface with 68mm ring dove tail (i)
    • Optional: Focus Extender and glass path corrector with factor 1.5 and ring dove tail (i) and (a)
    • ADC Corrector with 68mm ring dove tail (a) and ring dove tail (i)
    • Interface ring dove tail (a) to M48x0.75 (a)
    • Interface M48x0.75 (i) to M42x0.75 (a)
